As electronics continue to evolve, Surface Mount Technology (SMT) assembly faces increasing demands to fit more components into ever-tighter spaces. In-Circuit Testing (ICT), although slower than other SMT testing methods, remains crucial for thorough electrical validation, ensuring that each board meets all design and functionality requirements. Complementing ICT, other techniques provide targeted insights, each suited to specific testing needs.

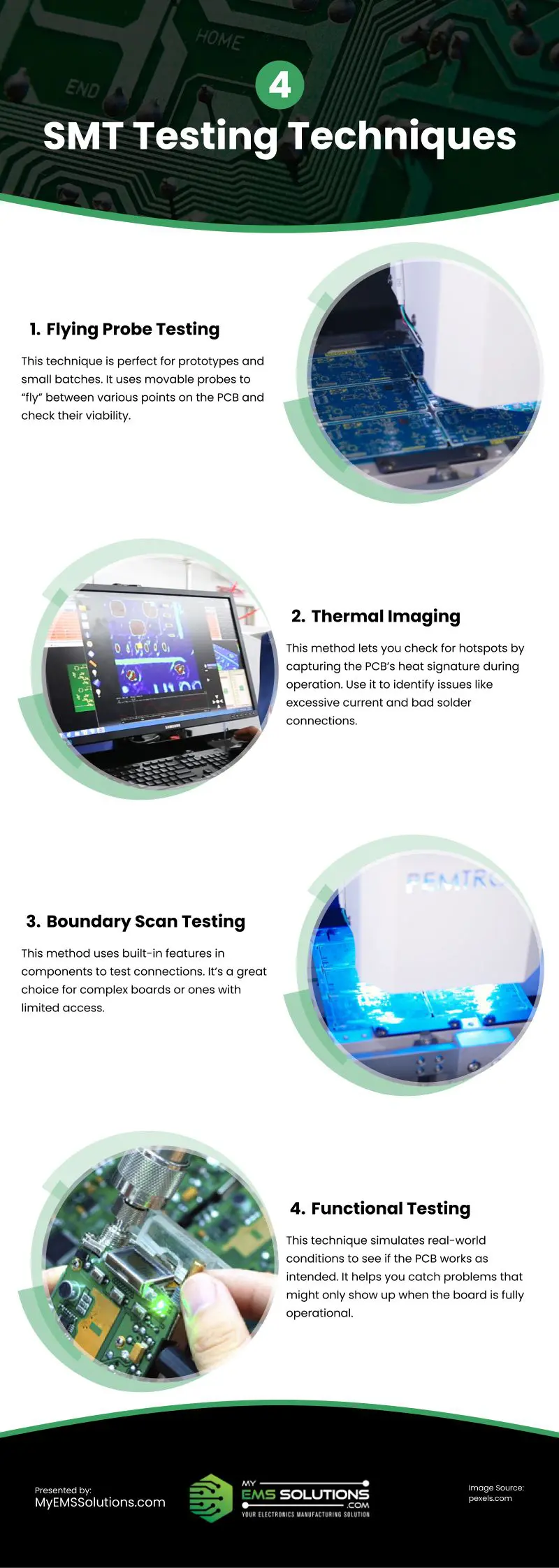

Flying Probe Testing, ideal for prototypes and small production runs, uses movable probes to check points across the PCB quickly. Thermal Imaging captures the board’s heat signature during operation, which helps identify issues like excessive current and poor solder joints. Boundary Scan Testing leverages built-in component features to assess connections, making it especially useful for complex boards with limited physical access. Functional Testing, meanwhile, replicates real-world conditions to verify that the board operates as intended, catching issues that might only appear under actual working conditions. These testing methods provide a comprehensive toolkit for ensuring high-quality SMT assembly in advanced electronics.
source: https://www.myemssolutions.com/smt-assembly-inspection-processes-and-test-technologies/
